Ideal choice fot thin-metal sheet

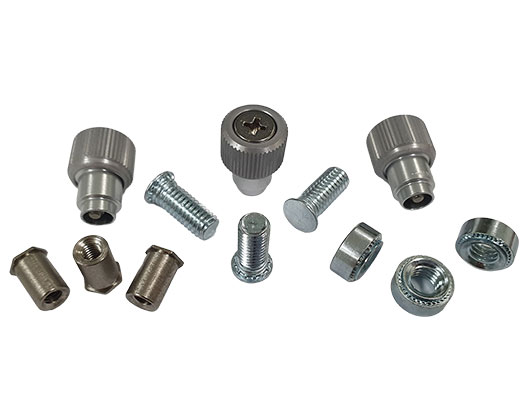

Clinching Fasteners

In order to get connection force on a thin plate,

taps are made by burning or bolt and nuts are used by welding.

However, it is difficult to get the desired connection force.

n such a situation, clinching fastener is the best product that can secure
screw thread on a thin base material.

Clinching fastener products are designed to to endure rotation resistance

with saw-toothed bumps formed on the products.

In order to get connection force on a thin plate, taps are made by burning or bolt and nuts are used by welding. However, it is difficult to get the desired connection force. In such a situation, clinching fastener is the best product that can secure screw thread on a thin base material.

Clinching fastener products are designed to to endure rotation resistance with saw-toothed bumps formed on the products.

Power Press Machine

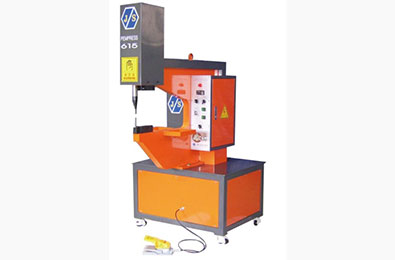

PEM PRESS MACHINE / FK-615

The latest model hydraulic press machine

Installation

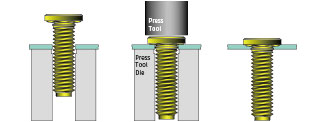

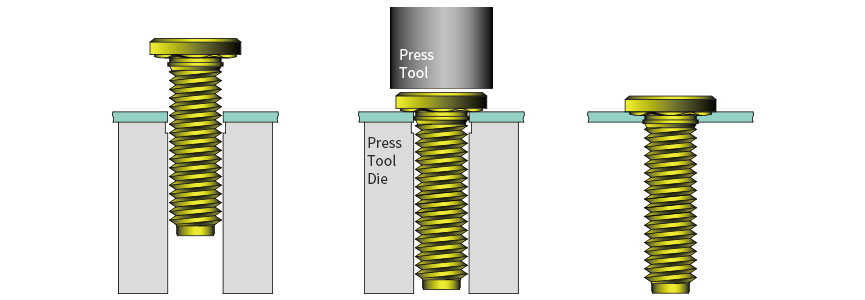

CLINCHING STUD

1) Put the base material on the die and insert STUD bolt into the hole.

2) Press in the head portion of STUD bolt using the press machine.

3) Connection is completed when the platform of the STUD bolt is completely pressed into the base material.

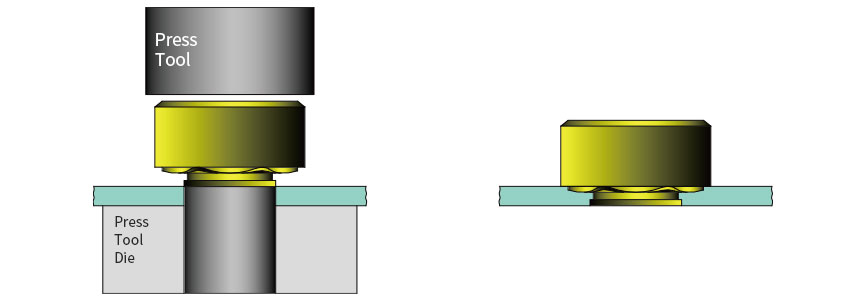

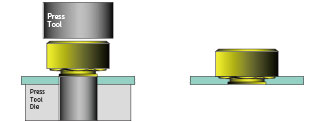

CLINCHING NUT

1) Put the base material on the die and insert clinching nut into the hole.

2) Press in the body part of clinching nut using the press machine.

3) Connection is completed when the platform of the clinching nut is completely pressed into the base material.

Benefit

No thermal deformation due to welding and straightness can be maintained.

Easy working and no need for skilled workers.

Very high rotation resistance torque

Nice outer appearance without bumps on the surface of the base material

Quality inspection can be done with the naked eye.

Can be used with simple press machine.

Assembly Application

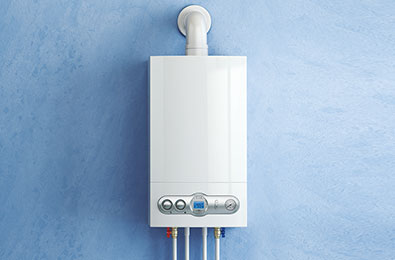

Boiler industry

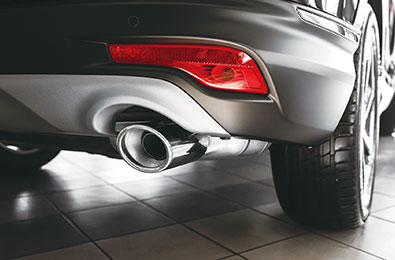

Automobile industry

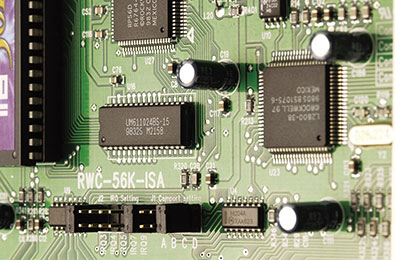

Computer industry

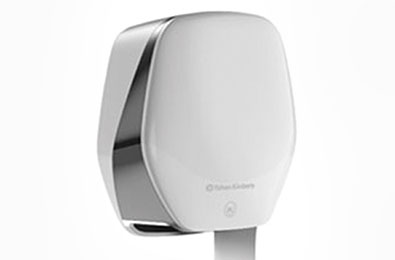

Living hygiene industry

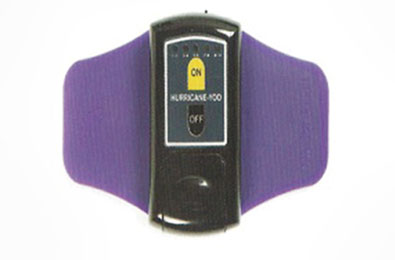

Small medical devices

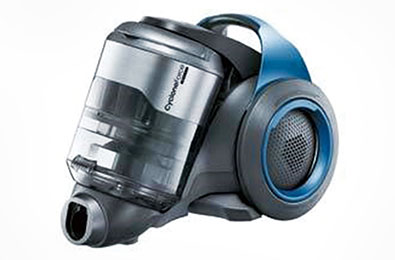

Home appliance
